Description

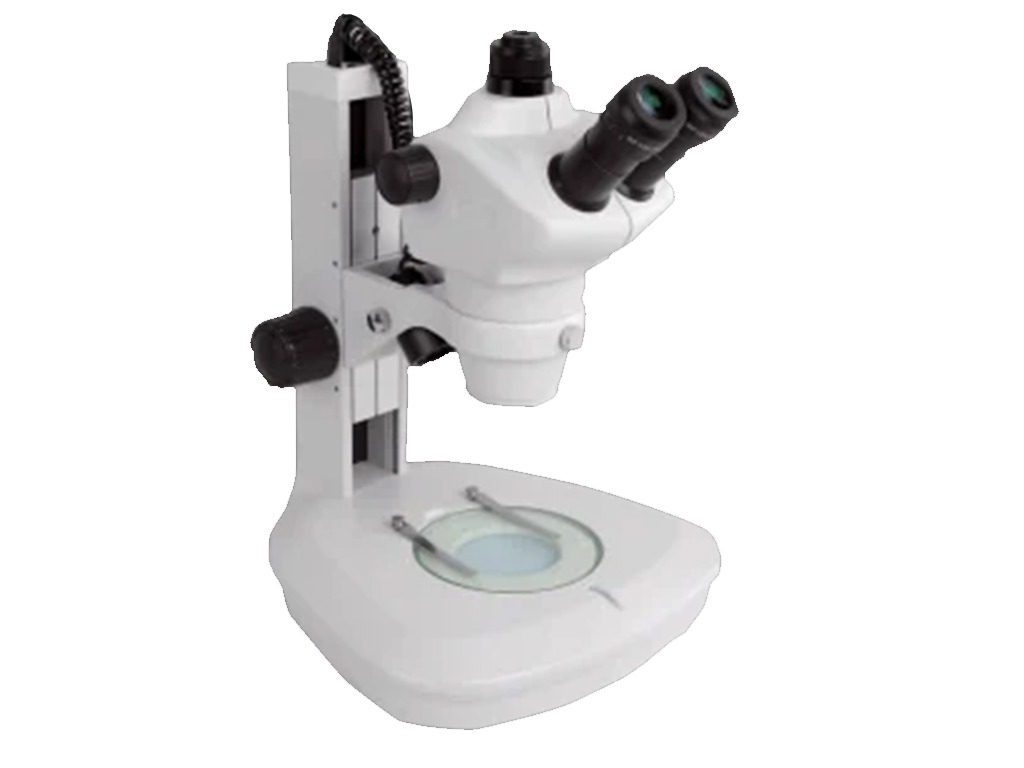

| Model No | TSZ-3 |
|---|---|
| Trinocular Observation Head | - Galileo optical system left & right parallel optical path - Observation head inclined from 45° - Vertical tube for micro photography - Diopter adjustment ring on ocular tube - Interpupillary distance from 55mm to 75mm |
| Eyepiece | Wide field 10X (Paired) F.O.V. 22mm |
| Zooming Range & Ratio | Zoom 0.6X to 5.1X with magnification ratio of 1:7:8 |
| Mechanical Body | - Track stand with Fan type base - Base Size is 330mm X 300mm - Clip for holding specimen - Lateral zoom control movement - On/off switch to provide flexibility to use either both light or any of them |
| Magnification Range | 6.5X to 5.5X |
| Working Distance | 110 mm |
| Standard Accessories | Operating manual, dust cover, guarantee card & Styrofoam molded pack |
| Illumination System | - Incident and transmitted light system with LED lamp - The system regulated with transformer has intensity control knob |
