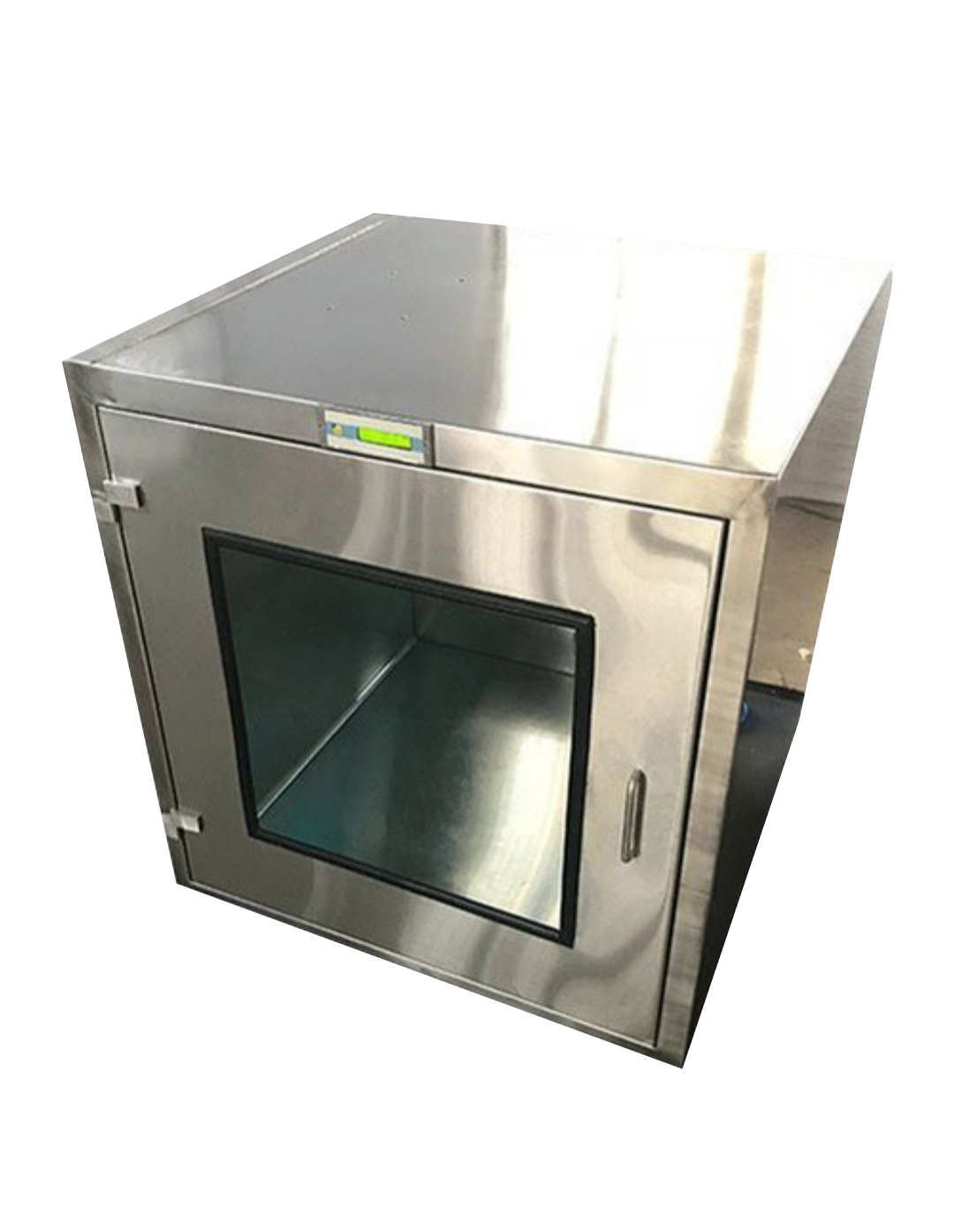

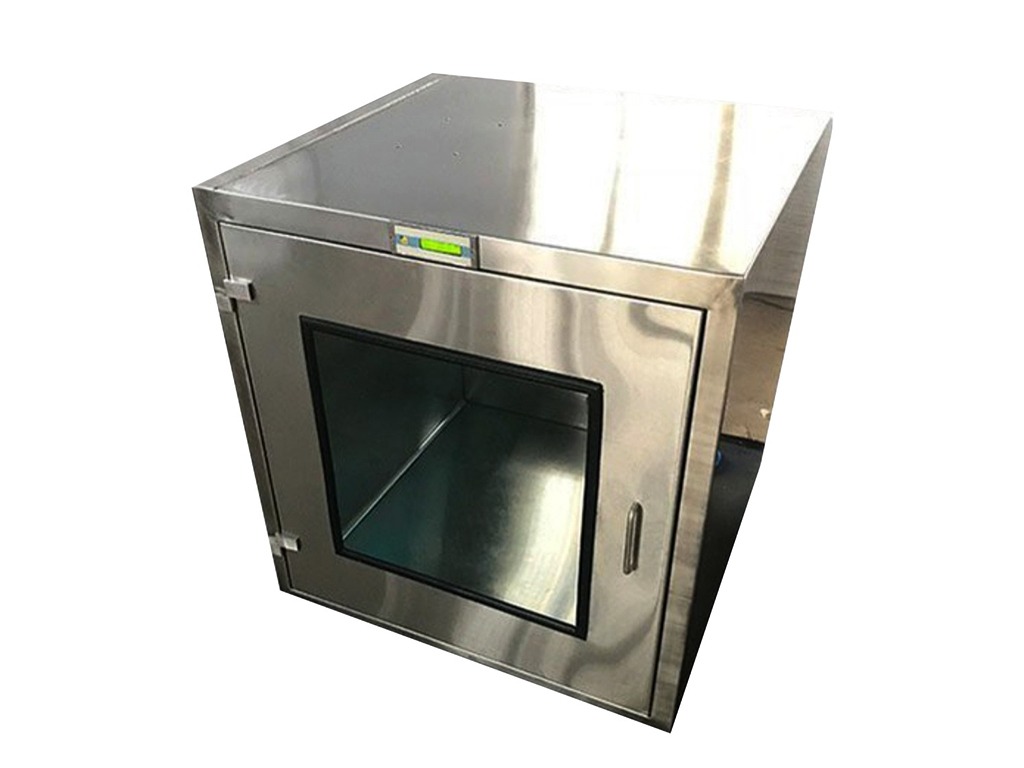

PASS BOX STATIC & DYNAMIC NDP & TSP SERIES

PASS BOX STATIC & DYNAMIC NDP & TSP SERIES

Pass box is one of the cleanroom systems, which is used to transfer materials from one side to other side through controlled environment in order to avoid airborne cross contamination. As the name states itself, the primary and only work of a pass box is to pass material from one side to other without raising contamination concern and if any particulate matter presents on the material surface, it swipes away during the operation.

Interlocking door mechanism is the prime feature of a pass box, when door at one side is open the door at other side remains closed. It is widely used in microbiology laboratories in food, pharmaceutical and chemical industries.

Salient Features

  • Rugged construction promises long service
  • Made to comply with international
  • Deliver low noise and easy to

Description

Model No.NDP-2TSP-2
Design TypeDynamicStatic/Passive
Cleanlines LevelClass 100
Internal Dimension2 x 2 x 2 Ft.
MOCStainless Steel 304
IlluminationLED tube light
Air SystemMotor-blower with suspension arrangement-
Filters- Pre filter(95%down to 5 micron) HEPA filter (99.97%) protected by SS grills-
DoorTwo side doors Glass window SS handles & SS hinges Electromagnetic interlocking system
Standard AccessoriesUV light Light indicators for door SS Handles & SS hinges On/ Off Switch for blower
Power Supply220 Volts/ 50 Hz
Optional Accessories- MOC SS 316/ 316 L Differential Pressure Gauge DOP Test Port, Flange Test certificates
- Calibration certificates Mechanical door interlocking Door buzzer UV light hour meter
