Description

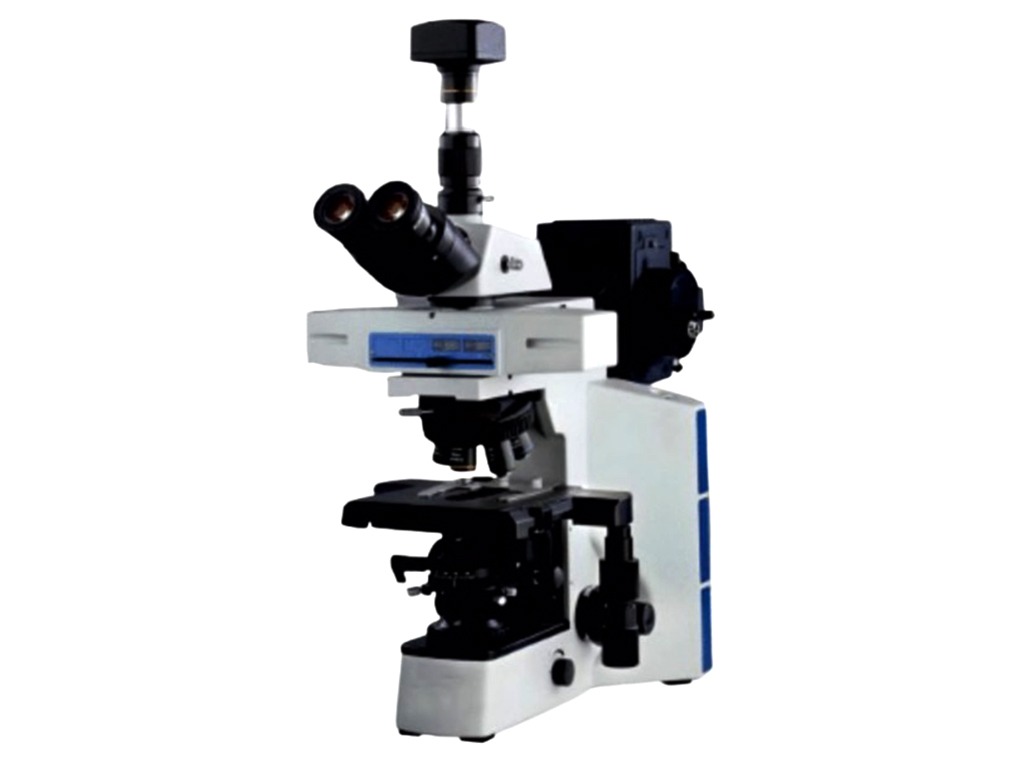

| Model No | TRINA -F |
|---|---|
| Trinocular Observation Head | - Siedentopf observation head inclined at 30° rotatable at 360°.Vertical photo tube for micro photography - Diopter adjustment ring on ocular tube(±5) - Inter-pupillary distance from 48mm to 75mm |
| Eyepiece | (Anti fungus) 10X/25 mm with diopter adjustment |
| Objectives | Plan Achromatic 2X, 4X, 10X, 20X, 40X, 100X (Anti Fungus Coated) |
| Mechanical Stage | - Double Plate Reckless Mechanical stage is 187mmX168mm Slot for Polarizer and DIC - The mechanical stage has low positioned co-axial controls on ball bearing guide ways |
| Nosepiece | Reverse angle sextuple nosepiece on ball bearing |
| Focusing | - Co-axial focusing system with large knobs, pre-focusing lever & tension adjustment ring - Fine division 0.001mm course, per rotation, fine stroke 0.1mm per rotation, moving range: 80mm X 55m - Built in transmitted filter LBD/ND6/ND25 |
| Sub stage Condenser | Swing out front lens, abbe condenser A. 0.9/0.25, filter holder & iris diaphragm |
| Excitation Filters (Optional) | B Excitation (400-490nm) standard, G Excitation (510-550nm) standard, UV Excitation (330-385nm) standard, V Excitation (400-410nm) standard |
| Reflected Illumination System | - Sextuple reflected fluorescence illuminator with iris field diaphragm and aperture diaphragm, central adjustable with filter slot and polarizing slot, with fluorescence filter (B/G/UV/V) 100W - Mercury lamp house, filament centre and focus adjustable with reflected mirror, centre and focus adjustable |
| Power | - Digital power controller, wide voltage 100-240 VAC - Imported OSRAM 100W Mercury lamp |
| Illumination | Transmitted Illuminator 12V/100W halogen lamp house for transmitted light, centre pre-set, intensity adjustable |
| Standard Accessories | 12V/100W halogen tungsten bulb, Power cord and cedar oil |
